New generation portable 808nm diode laser hair removal machine factory price 15inch capacitive screen
Parameter
| Laser type | Semiconductor laser |
| wavelength | 808 nm |
| Output Mode | pulse output |
| Control Method | Touch control |
| Screen Size | 15 Inch |
| Energy density | 20~70J/cm2 (Deviation≤±2%) |
| Pulse width range | 5-400ms |
| Spot size | 12*20mm |
| Frequency | 1-10HZ |
| Light spot surface temperature | 0-30°C |
| Cooling System | Semiconductor+built-in water+Air Cooling triple cooling systems |
| Dimension | 600*360*300mm |
| Net weight | 20kg |
| Fuse specification | Ø5×2510A |
| Input Power | 1800W |
| Input Voltage | AC220V±10% 10A 50HZ , 110v±10% 10A 60HZ |
Handle :
- 10 germany "dilas" laser bar inside . Total output 600w , 60w for each laser bar
- Big Spot size=12mm*20mm=2.4cm²
- Medical soft handle pipe .
Cooling
Strong Cooling continues working more than 12 hours
* Semiconductor- peltier elements 40*40mm double deck cooler
* Water-Medical use high pressure vane pump
* Wind-4 DC power fan with copper condensor
Operation:
1.Open machine choose Men / Women , skin type
2.Choose Treatment Area
3. Satrt Work
Treatment principle:
808nm diode laser use 808-nm diode laser technology, the gold standard in laser hair removal, energy penetrates deep into the dermis where the hair follicle is located, delivering high average power.Diode laser with sapphire contact cooling provides safe and effective reduction of pigmented hair for all skin types .
Fit for nearly full body areas hair removal:
810nm diode laser hair removal system for permanent & painless epilation can
be used for back, armpit, chest,arm & legs, bikini hair removal and even little areas epilation definitive, like feet or toe hair removal, ear hair removal and etc.
Hair removal treatments preparaton .
A:Shave off the hair
B: disinfect the treatment area with Alcohol
C: put 0.1mm gel on the treatment area to make the moving smoothly
D: turn on the machine, choose the right parameter and make the machine ready to work
E: Skin test
F. Treatment process
Hair removal process?
1. Cut or shave hair to 1-2mm or ask patients to shave at home 2-3 days before treatment.
2. Clear treatment area.
3. Turn on machine, adjust the parameter, set it to ‘standby’ .
4. Put cooling gel on treatment area about 2mm.
5. Wear protect glasses for patient and operator.
6. Shot the treatment area, let the crystal tip closely touch cooling gel, permitted to have 1/3 overlapping on treatment area.
7. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients feel warm or hot, you may put ice bag on treatment area until heat disappear.
Have it to easier your laser hair removal treatment , it will bring you a lot from your customer .Also help you expand your business .
Don't heisitate to contact us should you have any interest.
My ecer website: www.beautyforimi.com
Beijing Forimi S & T Co., Ltd
Mob/Whatsapp:+86 18629941726 | Skype: 18629941726
Facebook : Yoefe Lu
Email:
Yoefe@forimi.net Address:West zone Building No.5 Mauhwa Industry Park,Caida 3rdStreetShunyi District ,Beijing
|
|

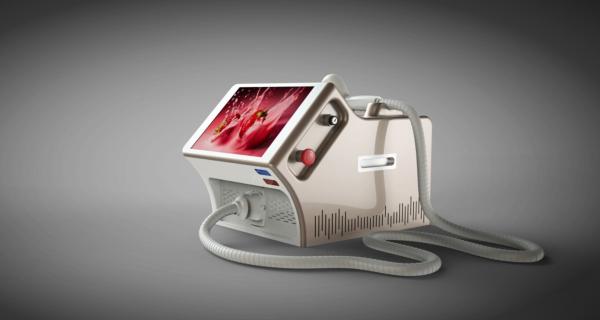

Portable diode laser hair removal machine wavelength 808nm 1800W power Images
|
